Item Name:

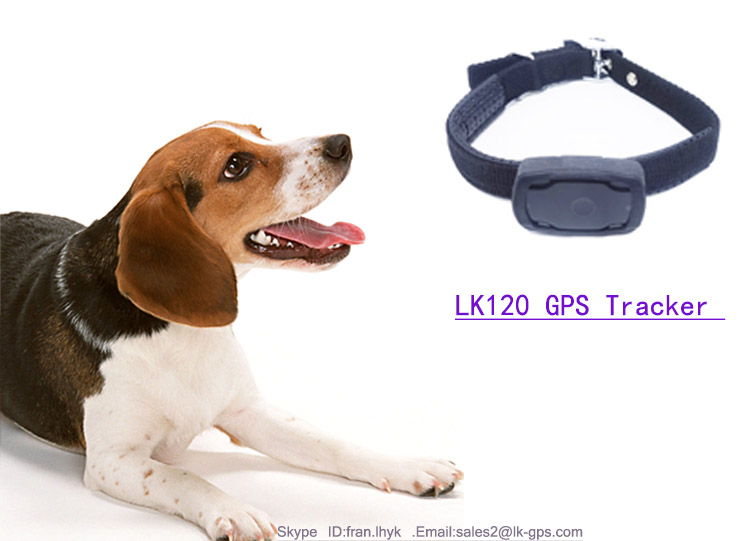

PET GPRS GSM SMS GPS Tracker Tracking System Device LK120 With Alarm

ACCESSORIES Includes:

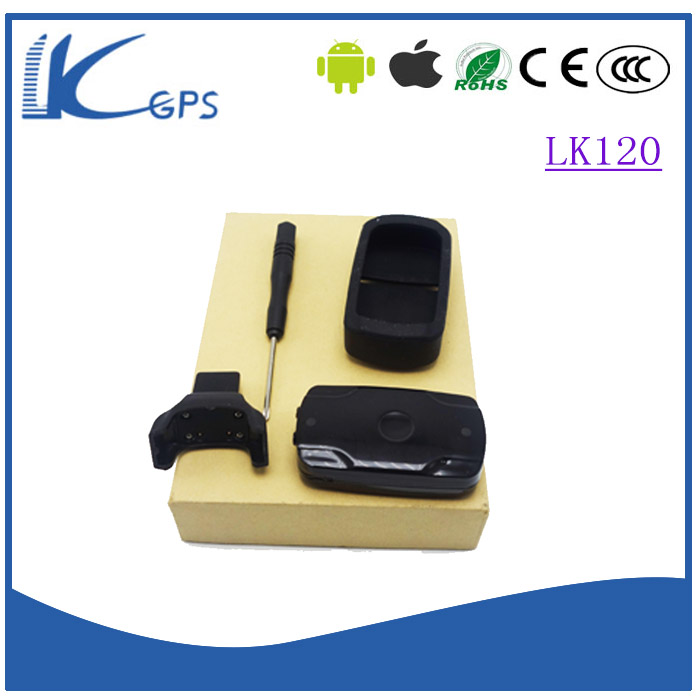

1 * GPS tracker
1 * User manual
Not includes SIM Card

Features:

1) Communication with GSM/GPRS, GSM frequency 4-band 850/900/1800/1900, can be used wordwide.
2) Track by your computer/PDA/cell phone/Google earth or our platform
3) Google link in mobile SMS, can be opened by smart phone.
4) Real-time track, get longitude, latitude, speed and time, also can get real address name by setting APN.
5) Auto track, automatically get information with interval
6) Position by both GPS and GSM (LBS) , when lose gps, it will position by GSM (LBS) .
7) High sensitivity: very quick to get GPS signal and reply to your call or SMS.
8) Geo-fence: send alert when out off preset fence.
9) With low battery alert/SOS alarm, GPS off alert
10) Monitor mode enable you hear the sound around the tracker.
11) State checking function: can check state of GSM, GPS, GPRS and battery.

Specs.

Descriptions:

1) GPS chip: UBLOX- 7 chip
2) GPS sensitivity: -159dBm
3) GPS accuracy: 5m
4) Time to First Fix: 45s (for Cold status); 35s (for Warm status); 1s (for Hot status)
5) Battery: Changeable 3.7V 1000mAh Li-ion battery
6) Network: GSM/GPRS
7) Band: 850/900/1800/1900Mhz
8) Wall charger: AC110-220V input, 5V output
9) Storage Temp: -40°C to +85°C
10) Operation Temp: -20°C to +55°C
11) Humidity: 5%--95% non-condensing

How to use it

1): Insert a SIM card ( 2G GSM 850 / 900/1800/1900MHz with sufficient fund) in the GPS tracker.

And turn on the device outdoors.

(when the green light and blue light are both flashing , you can do setting by step as below:)

2): Set admin number,APN and open GPRS to active device.

Step1. admin123456+space+your phone number

Step2. apn123456+ space+local apn content

Step3. gprs123456

Step 4: Call your tracker.( You'll received a message with coordinates, time, date, battery/signal life.)

How to Tracking by Platform

And Phone

1,Enter in www.lkgps.net, login by IEMI No.(the number in cover device)

2,Download APP with Android system:(Scan QR code as below)

3,Download APP with IOS system :

Link:https://itunes.apple.com/cn/app/lkgps/id959436591?mt=8

Function

GPS + GSM (LBS) Tracking

Geo-fence Alarm

Track by SMS/GPRS TCP

GPS Blind Area Alarm(optional)

Track on Demand

Low Battery Alarm

Track by Time Interval

Speeding Alarm

Track by Sleep Mode

SOS Alarm (only for Person gps tracker)

Track on Mobile Phone

External Power/oil Cut Alarm (only for LK210/LK206)

Inbuilt Motion Sensor

Drop alarm (only for LK209 series)

GPS/LBS log

Shocked alarm,Shift alarm

Positioning Playback

Inbuilt Super Magnet (only for LK209 series)
